Dual mono Class-D
Two Infineon MA12070P amplifiers run in a dual mono configuration, in PBTL mode. Each one drives one channel.
iF Design Award 2024
Integro
Connect your speakers and play. A streamer and a dual mono Class-D amplifier in one compact case.
DiscontinuedIntegro is no longer made.
- Premium features built in
- Made in Florence
The highlights
- 70WRMS per channel into 4 Ω, or 50 W into 8 Ω
- 2×Infineon Class-D amplifiers, one for each channel
- 480mWper channel into 32 Ω, on the 6.3 mm headphone jack
- 192kHzbit-perfect playback at 24-bit
- 2Vrmson the mono subwoofer output
- 3wired inputs: analog RCA, coaxial and optical

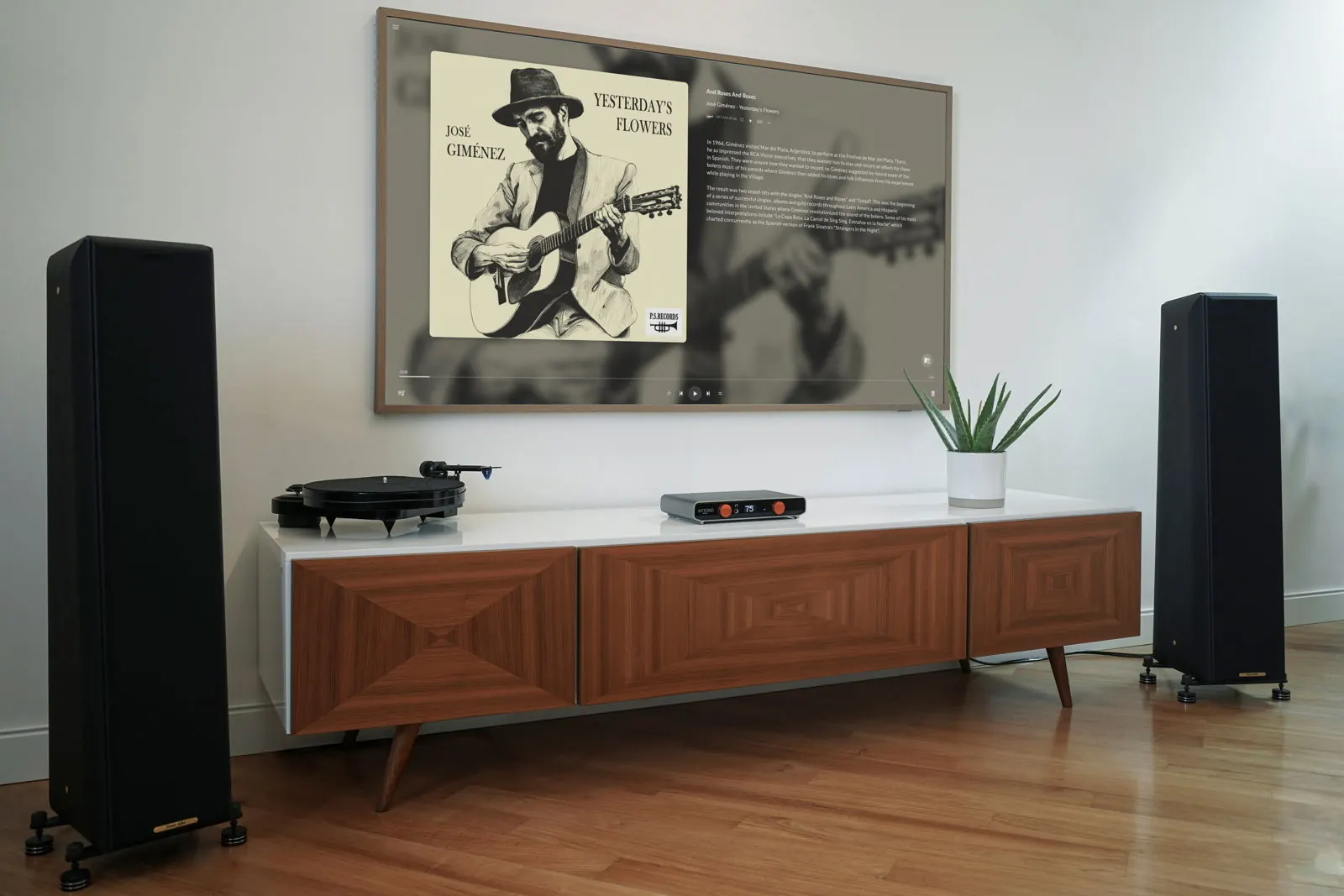

Integro and a pair of speakers make a complete hi-fi system. It is designed and assembled in Florence.

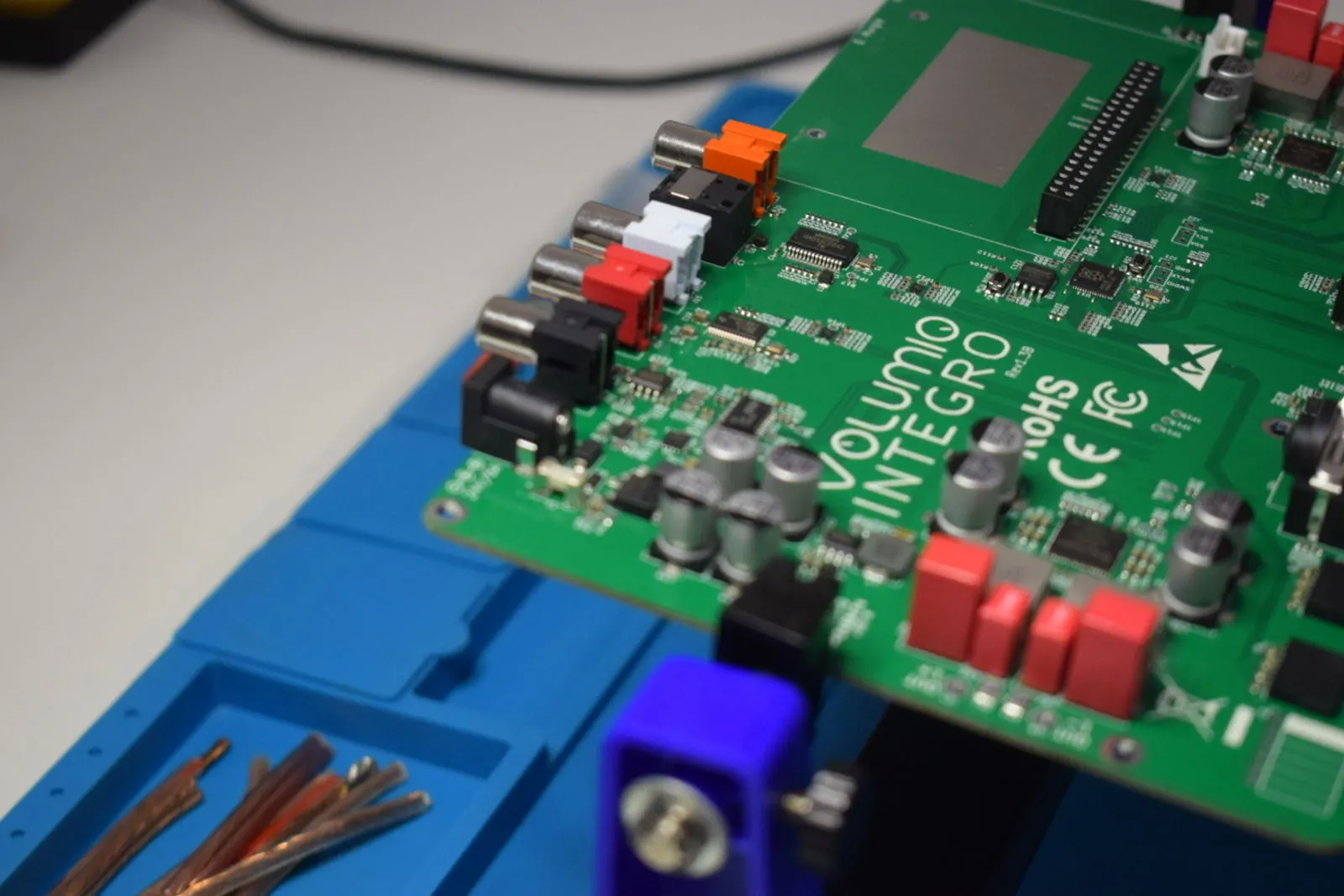

Look inside
Two amplifiers. One per channel.
Integro uses direct-digital Class-D amplification in a dual mono design, specially tuned for it. All the parts fit in one compact case, so all you add is a pair of speakers.
The output stage
The output stage uses WIMA polypropylene capacitors and inductors with a high saturation current.
192 kHz / 24-bit throughout
The speaker amplifier, the headphone amplifier, the subwoofer output and every input work at up to 192 kHz / 24-bit. Playback is bit-perfect up to that resolution.
Power
Speakers or headphones
Speaker outputs on the back, a headphone jack on the front, and a separate amplifier for each.
For your speakers

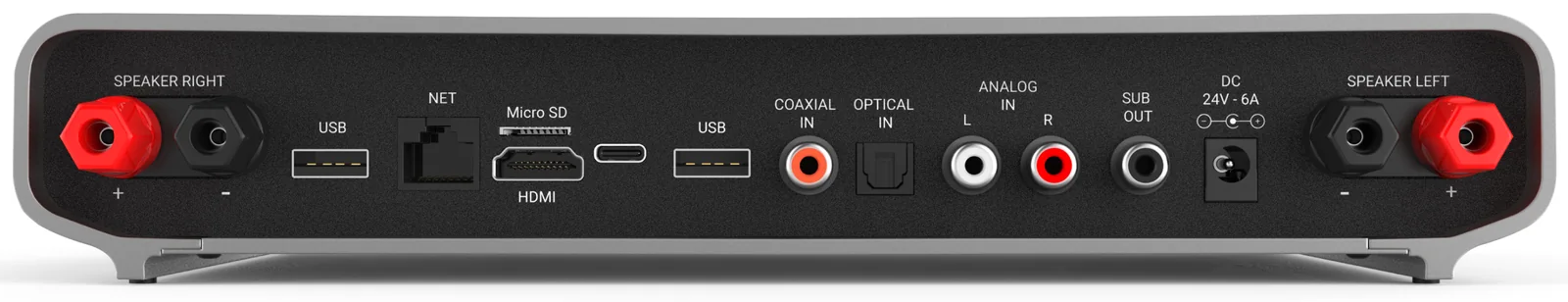

Connect them to the binding posts on the back, left and right. Up to 70 W RMS per channel into 4 Ω, and 50 W RMS into 8 Ω.
- 8 Ω
- 4 Ω
For your headphones
Plug them into the 6.3 mm jack on the front, and Integro detects them. A Texas Instruments PCM5122 DAC and TPA6120A2 amplifier drive the jack. Up to 480 mW per channel into 32 Ω, and 300 mW RMS into 64 Ω.
- 64 Ω
- 32 Ω

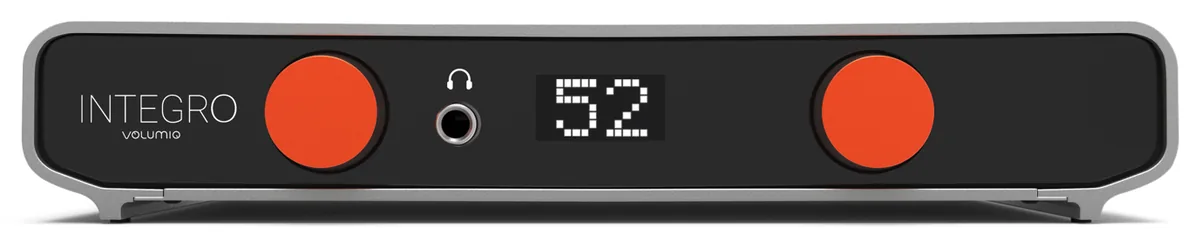

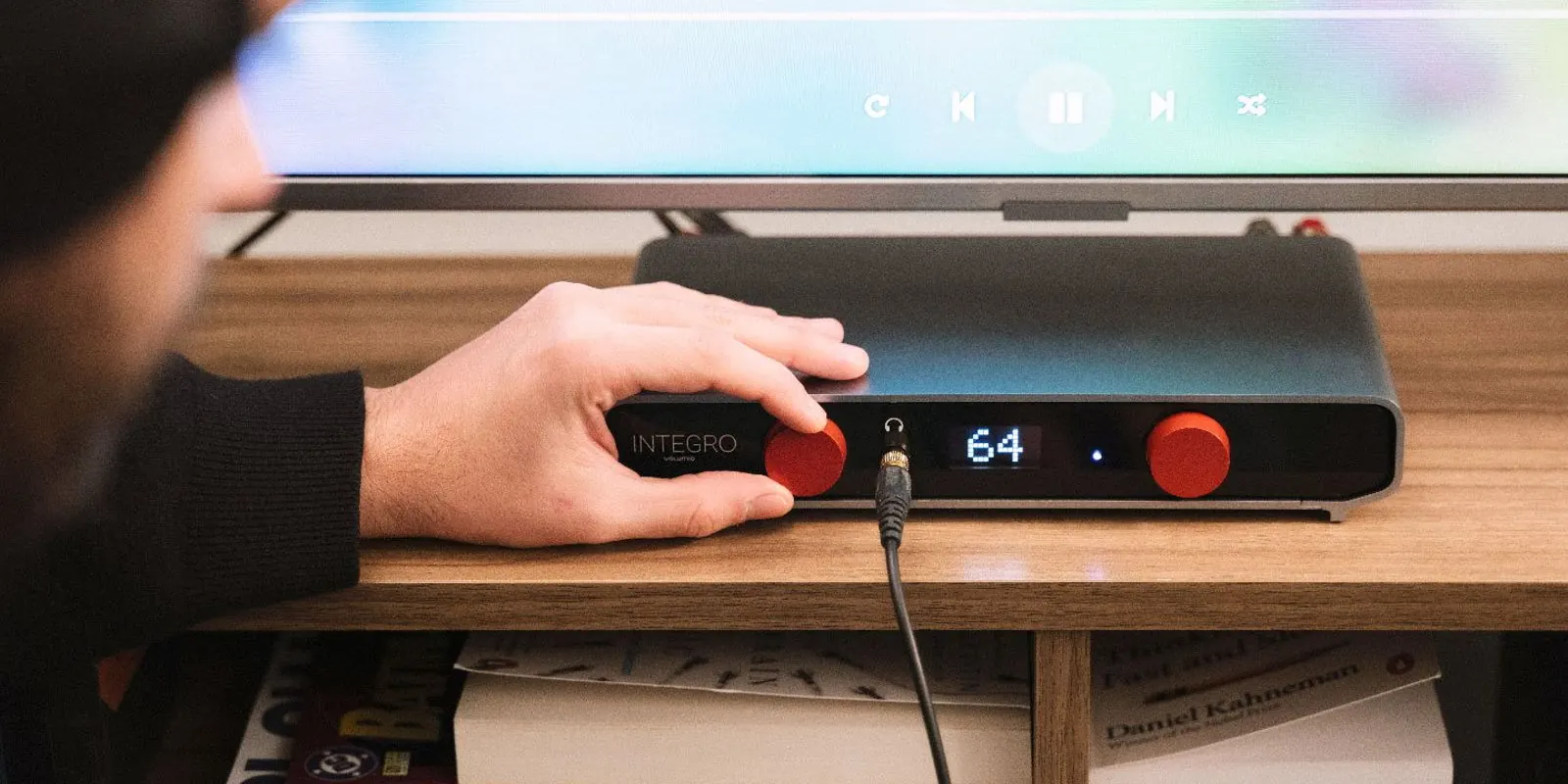

The headphone jack sits on the front, between the two knobs.
Connections
Stream it, or plug it in
Stream over Gigabit Ethernet, Wi-Fi or Bluetooth. Or connect a source to the analog, coaxial or optical input. Add a subwoofer, and connect a TV over HDMI for the Volumio on-screen menu.
In
- Network
- Gigabit Ethernet, or Wi-Fi 802.11a/b/g/n/ac with 2×2 MIMO
- Bluetooth
- 5.0, with aptX and aptX Low Latency
- Analog
- Stereo RCA, converted at up to 192 kHz / 24-bit
- Coaxial and optical
- S/PDIF on RCA and TOSLINK, up to 192 kHz / 24-bit
- USB × 2
- One USB 3.0 and one USB 2.0 port
- Power
- 24 V DC, 6 A
Out
- Speakers
- Left and right, 2 × 70 W RMS into 4 Ω or 2 × 50 W RMS into 8 Ω
- Headphones
- 6.3 mm jack on the front, with insertion detection
- Subwoofer
- Mono RCA, 2 Vrms
- HDMI
- The Volumio on-screen menu on your TV
Premium features built in
All your music, in one app
Integro has every Premium feature built in. Stream Spotify, TIDAL and Qobuz, with Spotify Connect, TIDAL Connect and AirPlay. Play music from local or network drives, or listen to internet radio.
They belong to this Integro, with no subscription. On a Raspberry Pi or a PC, the same features come with a Volumio Premium subscription.
On your TV

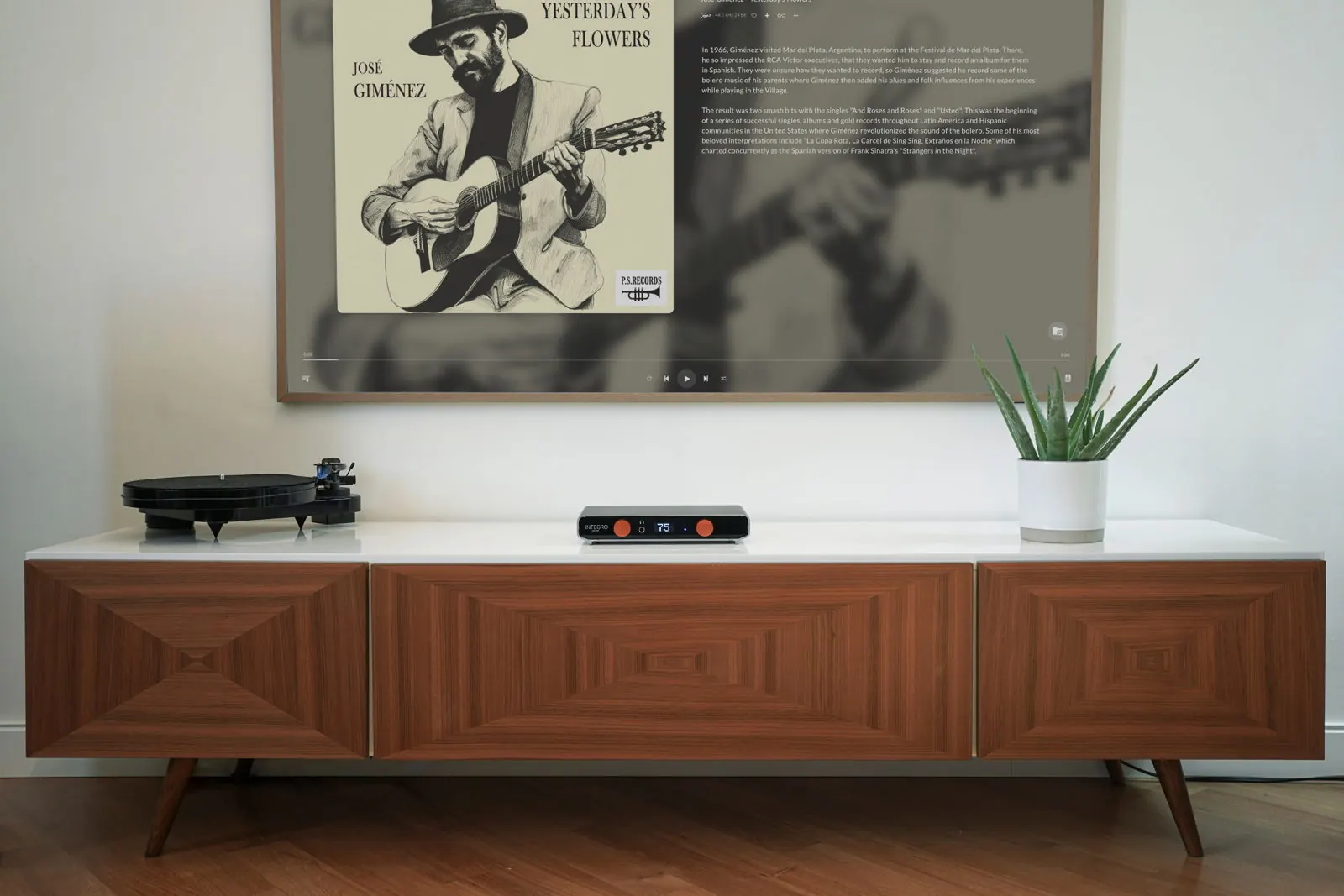

Connect HDMI to use the Volumio on-screen menu on your TV. Nova, the new Volumio interface, is in beta and on its way.
Discover Nova
In your hand

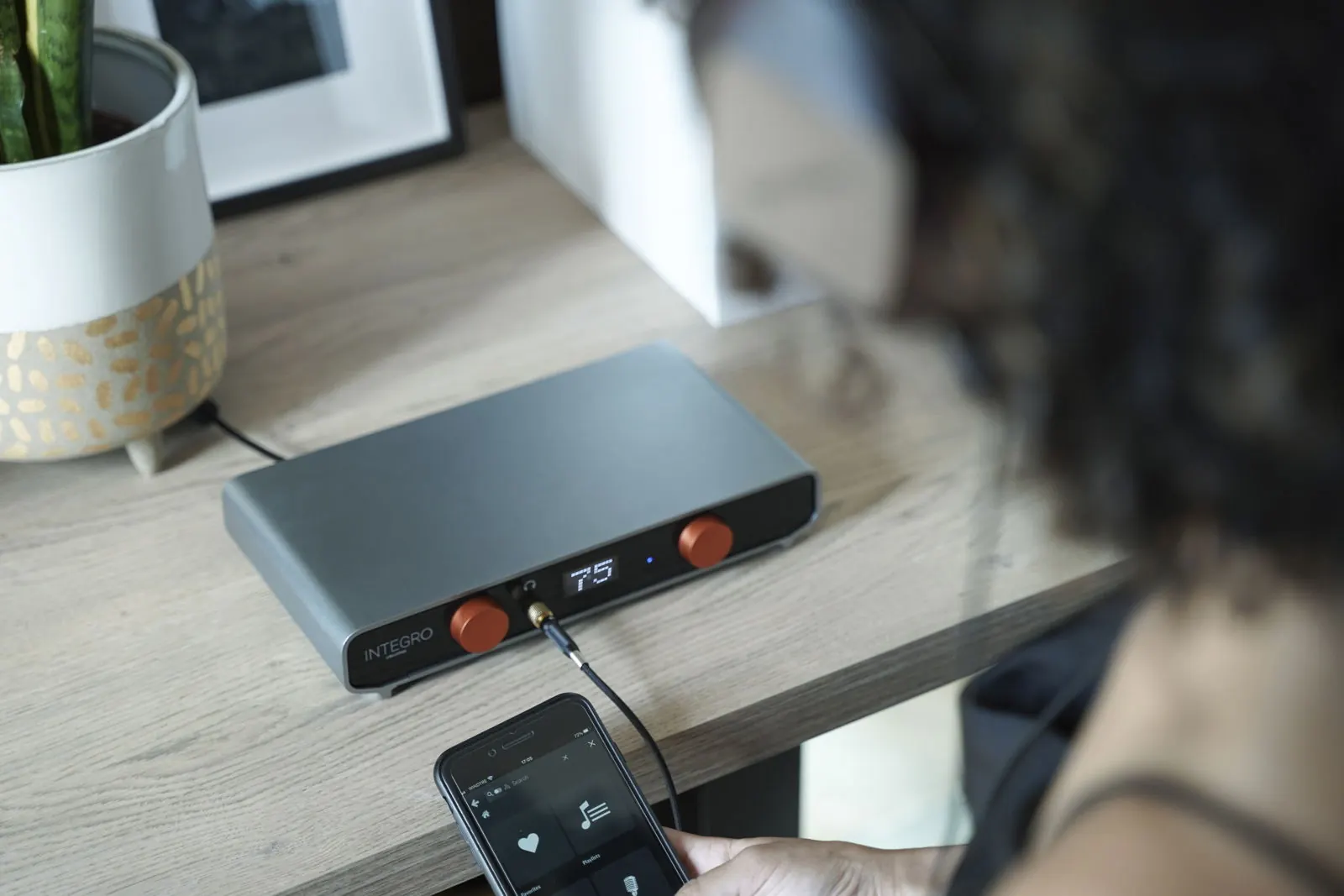

Getting started takes a couple of minutes with the Volumio app for iOS and Android.
Supersearch
An AI-powered search that helps you discover music.
Multiroom
Links Integro with the other Volumio players in your home.
Roon Ready
Certified by Roon Labs, so Integro works with Roon.
Design
Designed with Design Narratives

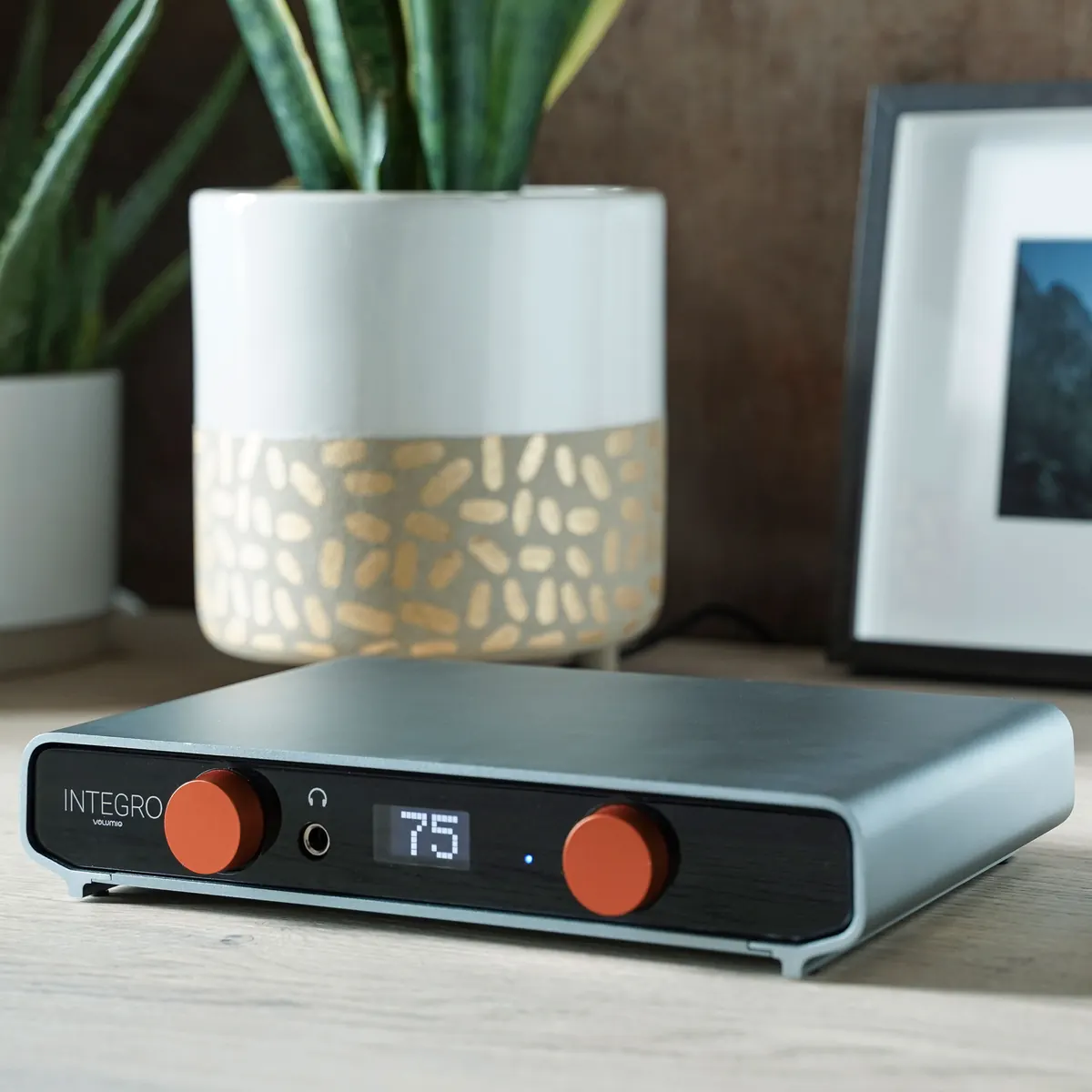

Integro was designed with Design Narratives, a Red Dot Award winner. The electronics sit in a compact chassis of antimagnetic aluminum. Two orange knobs control the volume and the inputs, next to an OLED display.
iF Design Award 2024
Badge as shown on the Integro page at shop.volumio.com.
Integro
Tech specs
Speaker amplifier
- Output power
- 2 × 50 W RMS into 8 Ω, 2 × 70 W RMS into 4 Ω
- Amplifiers
- 2 × Infineon MA12070P, dual mono, PBTL mode
- Type
- Direct-digital Class-D
- Output stage
- WIMA polypropylene capacitors and high saturation-current inductors
- Resolution
- Up to 192 kHz / 24-bit
Headphone amplifier
- Connector
- 6.3 mm jack, with headphone insertion detection
- Output power
- 2 × 300 mW RMS into 64 Ω, 2 × 480 mW into 32 Ω
- DAC
- Texas Instruments PCM5122
- Amplifier
- Texas Instruments TPA6120A2
- Resolution
- Up to 192 kHz / 24-bit
Inputs and outputs
- Analog input
- 1 × stereo RCA, Texas Instruments PCM1861 ADC, up to 192 kHz / 24-bit
- Digital inputs
- S/PDIF coaxial (RCA) and optical (TOSLINK), Wolfson WM8805 (now Cirrus Logic), up to 192 kHz / 24-bit
- Subwoofer output
- 1 × mono RCA, 2 Vrms, up to 192 kHz / 24-bit
- Subwoofer DAC
- Texas Instruments PCM5121, with an op-amp summing circuit for the mono down-mix
- Video output
- HDMI, for the Volumio on-screen menu
Streaming and playback
- Playback
- Bit-perfect up to 192 kHz / 24-bit
- Services
- AirPlay via Shairport Sync, Spotify and Spotify Connect, TIDAL and TIDAL Connect, Qobuz
- UPnP / DLNA
- Renderer with OpenHome support
- Plugins
- YouTube, Squeezelite, Radio Paradise, Podcasts, Pandora, Fusion DSP, Roon Bridge, SoundCloud, Mixcloud
- Roon
- Roon Ready, certified by Roon Labs
Network and processor
- Ethernet
- Gigabit, 10/100/1000
- Wi-Fi
- 802.11a/b/g/n/ac, 2×2 MIMO with RSDB
- Bluetooth
- 5.0, aptX and aptX Low Latency
- USB
- 1 × USB 3.0, 1 × USB 2.0
- Processor
- Amlogic S905D3, quad-core, 1.9 GHz
- Memory
- 2 GB DDR4
- Storage
- 16 GB eMMC
Power and design
- Power supply
- 24 V DC, 6 A, included
- Power supply input
- 100–240 V AC
- Designer
- Design Narratives Ltd.
- Dimensions
- 33.5 × 20.5 × 11 cm
- Weight
- 2.7 kg
Specs from shop.volumio.com, October 2026.
Integro
Discontinued
Integro is no longer made. Its page stays here for owners, with the tech specs.
